Final touches

I had finished my modelling and animation and set the lighting for the scene but I still wanted to add something to the look as I thought the scene was still quite bland. So I decided to use After Effects to finish the project and give it it’s final look.

I used the Fog 3D effects over a number of layers as I didn’t want the fog to move all in one layer but rather independently.The first layer I added a glow effect to near the door so it would look like the fog was reacting to the light. I then created two more fog layers, one for the foreground and one for the background.

Fog layers

As they were separate layers I could animate and light them separately.I adjust the rotation and transformation of the fog layers so it would be slow mist-like movement and I adjusted the foreground fog layer to react to the pod door when it swung open and shut. I didn’t quite achieve the effect I wanted with this as I wanted the fog reaction to resemble a ‘swirl’ but I couldn’t find a way of doing this.

Final pod with composite fog effects

Once my fog layers were animated in as best a way as I could get them, I decided my last ‘tweak’ would be the addition of sound effects. Originally I just wanted a fly buzzing noise which ended when the door hit it, but as is often the case I got overly ambitious and decided to have some more sound effects in there such as the actual The Fly’ theme music and the splat and glass squeak sounds.

These sounds took a lot of adjusting and changing until they hit the right time sections but eventually I got it as best I could and finally the project was complete within the timeframe and within the polycount.

Conclusion:

Of all the FGA projects so far this has been the most challenging for me, primarily because I find Maya a quite difficult programme to use. The process was complex and at times frustrating particularly when I had to rebuild my model from scratch due to the massive polycount. However once I had relearned Maya’s basics I was surprised at how quickly my project came along and although I had several glitches along the way I am pleased at my final work.

Lights, Camera, Action

In last weeks tutorial we were taught how to use the different lighting settings in Maya. Depending on the type of lighting option used these can greatly change the look and feel of your scene. Neuberger (2005) explains that although lighting the scene is the last step in the 3D process, it is also one of the most important as it can create a very specific mood that the artist is looking for that would not be obtained in any other way (P131).

There are several types of light including:

Ambient – Which is light form all around.

Point light – Which is a light which emanates from a point specified by the user.

Spot light: Which, as it sounds, creates a light behaving like a spotlight in the scene which the user can define and control.

Directional Light: Which is a even light which comes unidirectionally, usually acting as ‘the sun’ in the scene.

All of these can be used on their own or together to create specific effects, of course these can be tweaked in a lot of different ways such as the rate of the ‘decay’, the colour and the strength of the light.

For my scene I wanted to have a point light emanating from inside the Pod and two directional lights: One to illuminate the pod from the front and one from the back. The point light, I tinted a green to match the look I wanted and it added a lot of extra depth to the ‘glow’ from inside the pod.

The reason I added the light at the back is that that soon after I created the ‘feel’ I wanted I decided that I wanted the pod to cast some long shadows at the front, adding to the mood. The picture below, shows the pod with the shadows added.

The Fly III: Revenge of the rig

In last weeks tutorial we were taught to work with a single polygon primitive and create a model from that using tools such as extruding, splitting and tapering. Although this technique took a while to get the hang of it would make my telepod model a lot easier to work with if it was one object rather than comprised of as many as it was, it would also greatly reduce the polycount as even though I had removed quite a few polys there was still a larger amount than we were allowed.

Although I didn’t want to create the entire animation again, I could redesign the pod for the large part with just a single object and just extrude the rings. Obviously I would still have to keep the fly, door, dial etc as separate objects as they would need to animate independently.

My asset had little use for a rigging or UV mapping but I at least wanted to show what could have been done with a larger fly rig and also to show that I understood the basic mechanics of rigging so I recreated the fly starting as simple object and then extruded to get the shape I wanted, I then added a simple rig (IK legs/wings were not needed as the fly would not be grounded during the animation). The rig worked well but as I had detailed and animated so much of my own fly model I decided to keep my original.

Once the main body of my telepod had been remade using a single object, I started to work on perfecting the materials to give the scene a better look, more resembling the telepod in the film as best I could. I found several ways to create a better effect, first I added a green/blue glow to the door and a red glow for the light on the door dial. I then added the green/blue glow to the viewing port on the side. Once I had a look I was happy with I added a green tint to the reflected colour of the main telepod. I used the reference images below to help me with the model...

I also used the hypershade and material settings to adjust the look of the fly itself; changing the wings to a rippled transparent look and the eyes to a blueish purple shine.

Fly with default materials

Fly with new materials

Return of The Fly

Although I had decided on the hamster idea as my final game-ready asset involving the sphere, I decided to finish it off and make it as an animation just in case my hamster idea wouldn’t be game-ready in time.

The animated model at my first attempt had far higher than the allowed number of polygons so I had to remove as many faces/plans as I could without detracting from the model. As my original model was made as a solid model, there was a chance that removing the planes/faces I needed to make the ‘pod’ hollow would greatly decrease the number of polygons. Therefore I removed as many planes as I could without deforming the shape and concentrated on where the camera would not be shown too much such as the inside, underneath and back of the pod.

I decided to incorporate a simple animated fly into the scene, using parenting hierarchy and materials as we had been shown. The fly would fly around the pod erratically scene and be hit by the door of the telepod as per the storyboard below…

The animation took a large amount of time to do as I had to animate each wing-beat on each wing on every frame to male it look like the wings were beating quickly. The pod itself was simple to animate as it was mainly a solid non-moving object and only the door dial and the door would move in the animation. There were things that I wanted to incorporate into the animation such as the legs on the fly moving as the fly changes direction but due to the size of the fly the legs would barely be seen and therefore putting that amount of detail into them would be moot.

While I was working on the animation, I was pleased with how it was turning out and as it looked a lot more interesting I decided to make it my final game-ready asset instead of the hamster. I wouldn’t include the person going inside as I first envisioned as it would be far too time consuming but just keep the fly idea and refine my model.

Hamsters

For reference for my own hamster sphere idea I began collecting images and short Youtube videos showing hamsters and hamster balls (Reference sheet below). These helped me to see how a hamster in a hamster ball actually moves. With these I began to structure my own Maya hamster just using Polygon primitive spheres and trying not to worry about the topology at this stage.

                                       Reference photos

                                     Reference video

Making and creating the simple animation was not hard, there was a few things that I wanted to include in the animation but after learning that I would be unable to move the location of an object (or group’s) pivot I realised this was impossible. I came across the problem earlier when I tried to animate a simple waking gorilla made out of polygon primitives and I wanted to move the pivot point during the animation. Once the object/group was moved it would still rotate around the previous pivot point causing all the objects to disassociate.

With reference from the below photo I also began to construct a simplified hamster skeleton using Maya's 'bones'. I will add IK foot locks, ‘skin’ and animation to this at a later stage but it was helpful just to construct the skeleton and see how it would eventually move, from which joints and from which centres of gravity.

Hopefully this would be of great use in my final game-ready asset.

One destination: Too many routes

After another lesson in rigging showing us the essentials of inverse kinematic locks, I decided to read more as I found the technicalities quite hard to master so I looked back at my reference books such as Learning Maya 6: Character Rigging and Animation and Maya character animation. I also went back to rewatch the tutorial videos. I soon realised a problem; although they all promised the same end result i.e an inverse kinematic leg or a simple animated biped, almost every book or tutorial video I looked at had a different way of achieving it. Each source had a different method. For instance 'Rigging101.com' promoted the use of cube controllers and MEL commands, while most of the book and other tutorial videos didn't even mention MEL commands and I hadn't even encountered them before in Maya, let alone for this system.

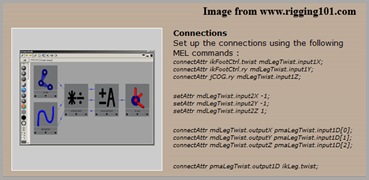

                                  Example of the confusing MEL commands on rigging101.com

This was a common problem not just for the rigging in Maya but for many of the systems, it seemed that there was 101 ways to skin a cg cat. One book would preach the ease of one system and one set of tools and another would preach an entirely different one. I found the only way around this was to try both and see which way worked best for me, it was a slow way to work as it meant trying a lot of variables but it did mean that I could find one that I was comfortable with using.

This was in effect most likely because there are a number of ways of doing the same thing in Maya, the toolbars can repeat what is on shortkeys on the keyboard etc so it’s understandable that people would find their own ways.
